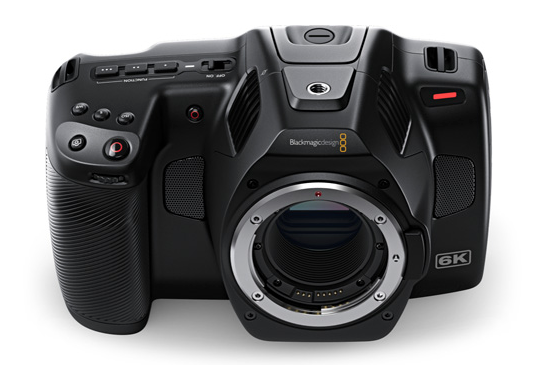

Blackmagic Design Pocket Cinema Camera 6K Pro (Canon EF)

Effective Sensor Size

23.10mm x 12.99mm (Super 35)

Lens Mount

Active EF mount.

Lens Control

Iris, focus and zoom on supported lenses.

Dynamic Range

13 Stops.

Dual Native ISO

400 and 3200

Shooting Resolutions

6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5744 x 3024 (5.7K 17:9) up to 60 fps
4096 x 2160 (4K DCI) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
2868 x 1512 (2.8K 17:9) up to 120 fps
1920 x 1080 (HD) up to 120 fps

Frame Rates

Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD.

Built in ND Filters

Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters.

Focus

Auto focus available using compatible lenses.

Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.

Screen Dimensions

5” 1920 x 1080.

Screen Brightness

1500nits

Screen Type

LCD capacitive touchscreen.

Metadata Support

Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.

Controls

Touchscreen menus on 5 inch screen. 1 x Power Switch,1 x Record Button, 1 x Stills Button, 1 x Scroll Wheelwith push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 2 x ND filter button, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.

Timecode Clock

Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Total Video Inputs

None

Total Video Outputs

1 x HDMI up to 1080p60

Analog Audio Inputs

2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. Can also be used for Timecode input.

Analog Audio Outputs

1 x 3.5mm headphone jack.

Computer Interface

USB Type-C for external drive recording, PTP camera control and software updates.

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

SD Video Standards

None

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K DCI Standards

4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60

Media

1 x CFast card slot, 1 x SD UHS‑II card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording.

Please click here for a summary of compatible media.

Media Format

Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Codecs

Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5,
ProRes 422 HQ QuickTime,
ProRes 422 QuickTime,
ProRes 422 LT QuickTime,
ProRes 422 Proxy QuickTime.

Color Corrector

DaVinci YRGB.

6144 x 3456 (6K)

Blackmagic RAW 3:1 - 323 MB/s
Blackmagic RAW 5:1 - 194 MB/s
Blackmagic RAW 8:1 - 121 MB/s
Blackmagic RAW 12:1 - 81 MB/s
Blackmagic RAW Q0 - 242 to 483 MB/s
Blackmagic RAW Q1 - 162 to 387 MB/s
Blackmagic RAW Q3 - 108 to 277 MB/s
Blackmagic RAW Q5 - 65 to 162 MB/s

6144 x 2560 (6K 2.4:1)

Blackmagic RAW 3:1 - 240 MB/s
Blackmagic RAW 5:1 - 144 MB/s
Blackmagic RAW 8:1 - 90 MB/s
Blackmagic RAW 12:1 - 60 MB/s
Blackmagic RAW Q0 - 180 to 359 MB/s
Blackmagic RAW Q1 - 120 to 287 MB/s
Blackmagic RAW Q3 - 80 to 205 MB/s
Blackmagic RAW Q5 - 49 to 120 MB/s

5744 x 3024 (5.7K 17:9)

Blackmagic RAW 3:1 - 264 MB/s
Blackmagic RAW 5:1 - 159 MB/s
Blackmagic RAW 8:1 - 100 MB/s
Blackmagic RAW 12:1 - 67 MB/s
Blackmagic RAW Q0 - 198 to 396 MB/s
Blackmagic RAW Q1 - 133 to 317 MB/s
Blackmagic RAW Q3 - 89 to 227 MB/s
Blackmagic RAW Q5 - 54 to 133 MB/s

4096 x 2160 (4K DCI)

Blackmagic RAW 3:1 - 136 MB/s
Blackmagic RAW 5:1 - 82 MB/s
Blackmagic RAW 8:1 - 51 MB/s
Blackmagic RAW 12:1 - 35 MB/s
Blackmagic RAW Q0 - 102 to 203 MB/s
Blackmagic RAW Q1 - 68 to 163 MB/s
Blackmagic RAW Q3 - 46 to 116 MB/s
Blackmagic RAW Q5 - 28 to 68 MB/s
Apple ProRes 422 HQ - 117.88 MB/s
Apple ProRes 422 - 78.63 MB/s
Apple ProRes 422 LT - 54.63 MB/s
Apple ProRes Proxy - 24.25 MB/s

3840 x 2160 (Ultra HD)

Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s

3728 x 3104 (3.7K 6:5 anamorphic)

Blackmagic RAW 3:1 - 177 MB/s
Blackmagic RAW 5:1 - 106 MB/s
Blackmagic RAW 8:1 - 67 MB/s
Blackmagic RAW 12:1 - 45 MB/s
Blackmagic RAW Q0 - 133 to 265 MB/s
Blackmagic RAW Q1 - 89 to 212 MB/s
Blackmagic RAW Q3 - 60 to 152 MB/s
Blackmagic RAW Q5 - 36 to 89 MB/s

2868 x 1512 (2.8K 17:9)

Blackmagic RAW 3:1 - 67 MB/s
Blackmagic RAW 5:1 - 41 MB/s
Blackmagic RAW 8:1 - 26 MB/s
Blackmagic RAW 12:1 - 17 MB/s
Blackmagic RAW Q0 - 51 to 101 MB/s
Blackmagic RAW Q1 - 34 to 81 MB/s
Blackmagic RAW Q3 - 23 to 58 MB/s
Blackmagic RAW Q5 - 14 to 34 MB/s

1920 x 1080

Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
